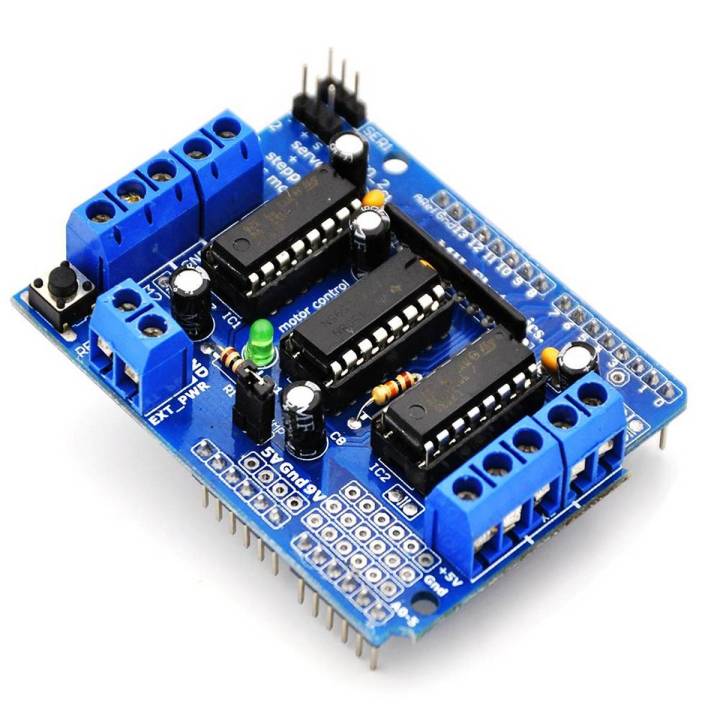

Function: Motor driver shield designed for controlling DC motors and stepper motors with ease.

Driver IC: Uses L293D dual H-bridge motor driver ICs for bidirectional control of motors.

Operating Voltage: Supports motors powered from 5V to 12V (depending on power supply).

Control Interface: Designed as a stackable shield for Arduino Uno/MEGA and compatible boards.

Motor Channels: Can control up to 2 DC motors or 1 stepper motor simultaneously.

Current Capacity: Each motor driver channel can deliver up to 600mA continuous current, with peak currents up to 1.2A.

Protection Features: Built-in flyback diodes to protect against voltage spikes caused by motor inductance.

Logic Level: Operates at 5V logic, compatible with most Arduino boards.

Additional Features:

Screw terminals for secure motor power connection

Jumpers to select motor voltage source (shield or external)

Headers for easy connection to motors and Arduino pins

Programming: Compatible with Arduino Motor libraries for simple motor speed and direction control.
